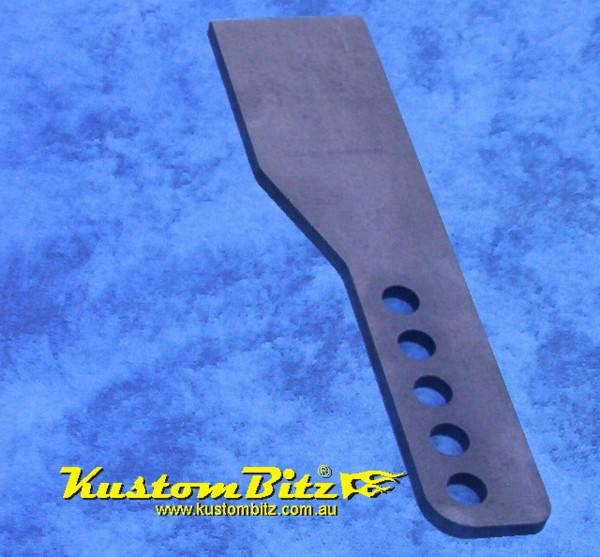

Diff Pan Hard Bar Chassis Side Dropper Bracket ~ thick 8mm Mild Steel, 5 x 5/8 holes, 300mm long

Overall Rating :
Mild steel 8mm thick plate - UNIVERSAL BRACKET. Ideal for use with rear pan hard bars.

Product Description
General Purpose Pan Hard Bar Bracket

Part# KB-MSP-80-CPH-300-58 : Kustom Bitz laser cut plate steel bracket. These mild steel brackets are a universal hot rod or custom car differential mounting and locating bracket. Weld them to the chassis side of the locating pan hard bar. We have made them extra thick for added strength. Shape, width at the top, and length allow you to cut out the bracket to suit your chassis shape.  There are a lot of forces on the pan hard bar in cornering, therefore the fabricator has to carefully and skillfully mount and locate the bracket for maximum strength. Ideally the bracket needs to grip the chassis or be slotted into the "C" shape so you are not totally reliant on your welds. The geometry of your pan hard bar is also very important to the safe handling of your vehicle so it is a must that you always seek engineering advice from a qualified person.

If you do not see what you need here then send us a quick set of diemensions or a rough sketch and we can make it for you.

Price is per unit ~ one only
The size and thickness of these brackets conform to the Australian Street Rod Construction Guidelines.

For added strength you can use one of our boxing plates to go between a pair of these brackets click here.
Main Dimensions of interest.
Hole size suits a bolt =  5/8 inch [16mm]
Number of Holes = 5
Hole spacing = 1 inch [25mm]
Material = mild steel plate
Material thickness = 8.0mm
Total Height = 300mm
Total width = 76mm
Shape = Rectangular
