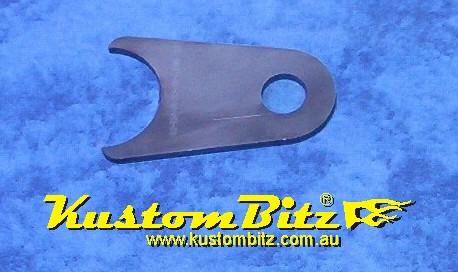

Mild Steel Chassis Bracket Isosceles Triangle SHORTY to 40mm round tube with 1 x 5/8 hole. 82mm high x 50mm wide

Overall Rating :
Mild steel 4mm thick plate - UNIVERSAL BRACKET. Ladder Bars, hair pin radius rods, Pan hard bars, triangulated 4 bars, torque bar or engine mounts
$5.00
Qty



Product Description
General Purpose Chassis Bracket


Part# KB-MSP-40-CT40-82-58 : Kustom Bitz laser cut plate steel bracket. These mild steel brackets are a universal hot rod or custom car chassis bracket. Weld them to a round surface, or cut them down, or put shape into them to fit your chassis or any application you see fit. They can be usefull for custom making engine mounts and engine supports on your chassis.

The whole idea here is to provide the custom car fabricator with a range of quality cut brackets that do not cost the earth. They can be handy to have few lying around the shed for mocking up your next project car or chassis. If you do not see what you need here then send us a quick set of diemensions or a rough sketch and we can make it for you.

Price is per unit ~ one only

The size and thickness of these brackets conform to the Australian Street Rod Construction Guidelines.

Main Dimensions of interest.
Hole size suits a bolt =  5/8 inch [16mm]
Number of Holes = 1
Hole spacing = N/A
Attaching cut out diameter = 40mm round
Material = mild steel plate
Material thickness = 4.0mm
Total Height = 82mm [SHORT]
Total width = 50mm
Shape = Isosceles Triangle
