Lower Shocker mount Ford Style Leaf springs - Weld on style corner angled plate adjustable M20 hole

Overall Rating :

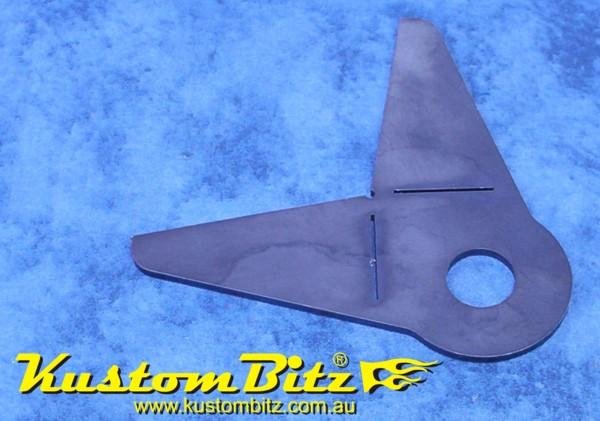

Weld on lower shock absorber mounts suits pin style shockers. Picture shows actual bracket.

Product Description
Part# KB-MSP-40-LC-SHR-PIN : Kustom Bitz diff brackets range are stronger than the standard OEM units ~ this lower shock absorber mount suits our Leaf spring style clamping plates. Made from mild steel this bracket is heavy duty 4mm thick plate.

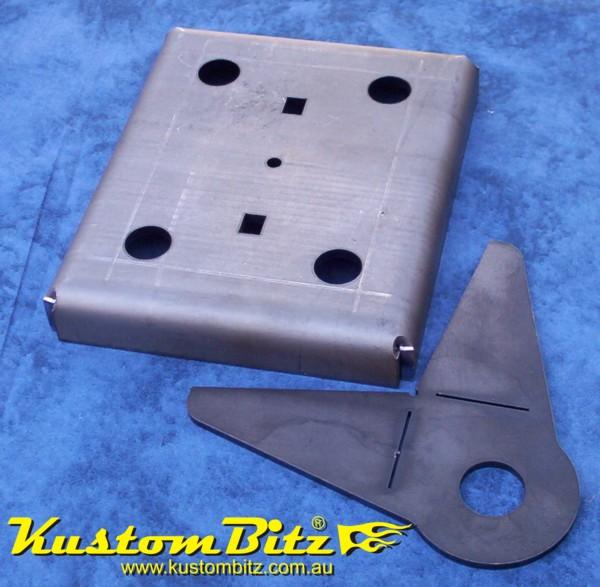

This part number is for the pin or stud end style shocks.  The idea is that this can be welded to the lower leaf spring clamp plate. This example is based on the Ford design that was used in 1960's and 1970's Fords with leaf spring rear ends.  There are slits in the bracket that allow you to easily bend this mount in a simple garage vise to get the desired angle to suit your vehicle.  When using these mounts with our leaf spring clamping pates that have deep returns on the bottom which allows you more adustment for angle when you position them for welding. Then simply weld up all the slits for strength.

Price is per unit ~ one only.
This design is such that it allows you to cut, file and bend it so as you can place your shocker in a good position. Perfect for modified cars with lowered suspension.

For a matching leaf spring clamping plate click here.The KustomBitz range is available to suit diff tube diameters of 64, 71, 76 and 84mm which covers the most common Borg Warner and Ford 9 inch diffs. Other diameters can be made to size however the idea is that a small amount can be linished off if your tube diameter is within one or two millimeters of the avalable sizes.This particular part number is for the 54mm wide narrow springs and will suit a diff tube diameter of 64mmPart# KB-MSP-60-DT64-LEAF-54-STD : Kustom Bitz diff brackets range are stronger than standard units ~ Leaf spring style bracket that welds to the differential axle tube. Made from mild steel this bracket is heavy duty 6mm thick plate wich is thicker than a standard 9 inch diff bracket, it is also slightly longer, it has bigger folded returns on the ends for strength and it grips the tube for a full 180 degrees.K  :  axle tube
