Holden Six Red Motor 179, 186, 202, 4 Barrel Manifold - Holley Flange

Overall Rating :
Holden 179 186 202 4 barrel red motor manifold Holley Rochester Carter Edelbrock Flange

Product Description

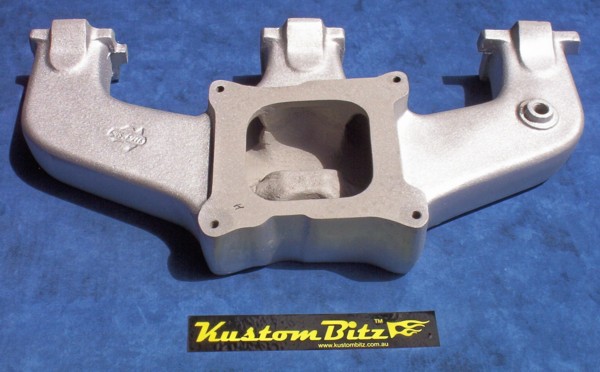

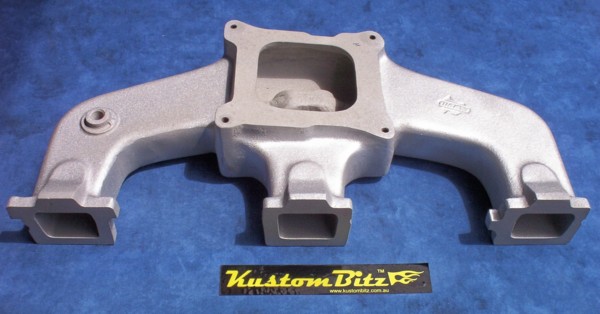

Part# AS0002 Holden 179 186 202 4 barrel red motor manifold

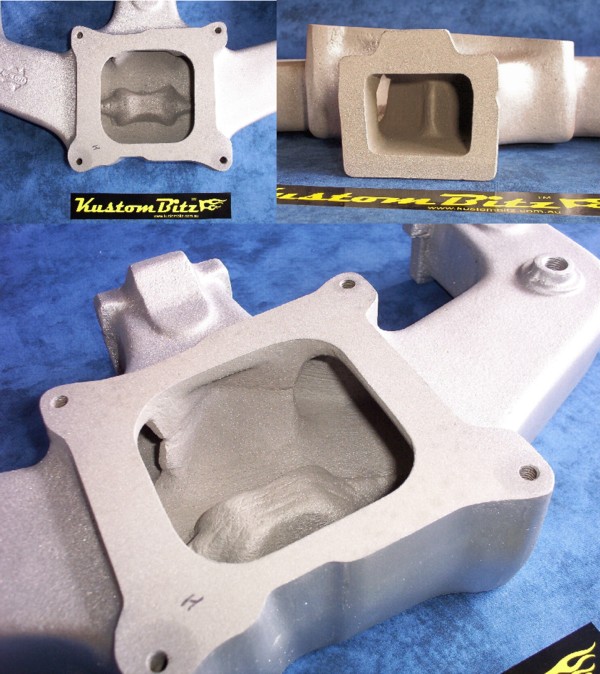

AussieSpeed 9 port large volume runner manifold great for hot street engine, This is a much improved design when compared to the old John Cain manifolds and other manifolds currently on the market. With a flow bench tested plenum shapped for improved air speed in the ports and centre port divider so cylinders 3 and 4 do not run rich ensures even fuel distribution to all cylinders, this alloy manifold is a real performer.
This four barrel manifold suits hot street engine with rpm range 1500 to 6000+ rpm. Recommended on naturally aspirated street engines, if you are using an auto trans then match high stall converter to lower end of your camshafts pulling range and use diff ratio of 3.5 or lower [3.7] to get it to rev.  If you intend on using a stock converter and standard or highway diff gears then for best results select a camshaft [dur @ .050 < 210 & lobe sep >110deg] to give high air speed in the ports at idle and low rpm and use a vac secondary 4 barrel.
Budget Stud and Nylock nuts  to suit click here.
Studs and polished stainless steel, Nuts, Nylock Nuts, Dome Nuts.
Sean Hammonds HR holden Panel van fitted with a warm 202 holden red motor with a 30/70 cam, chilled iron lifters, a stage 3 yella terra 186 head and AussieSpeed 4 barrel manifold with an edelbrock 4 barrel vacuum secondary carburettor [click on the pic to see bigger]. Sean reports that it is a big imporvement over the 350 Holley two barrel he used to run on an old manifold, the car now has good torquey low down drivability and good mid range throttle response, at the time of the conversation he felt the 4 barrel needed jetting down on the secondaries and slow the secondaries opening, however for straight out of the box perfromace he was pleased. To view a pic of Sean's Panel van click here.
 AussieSpeed 4 barrel intake manifold and 390cfm carby make 263hp 220fbs see video for details
